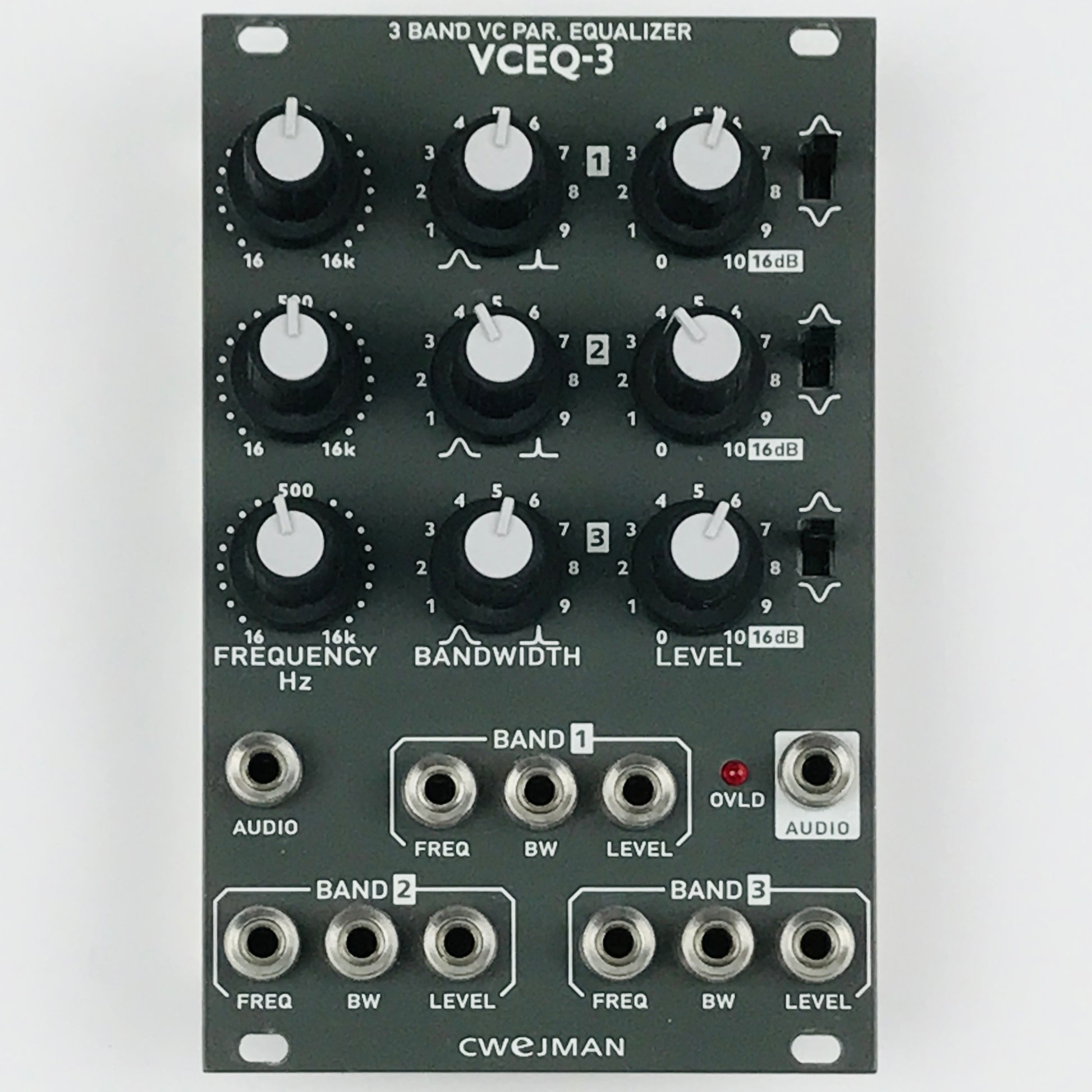

Cwejman VCEQ-3 3-Band Parametric EQ module

The VCEQ-3 consists of three individual parametric equalizers. Frequency, bandwidth, and amplitude can be controlled by dedicated knobs and/or by external signals, individually, for each band. All three bands are identical in their frequency, bandwidth, and amplitude control.

Frequency Range: 5Hz to 22kHz
Bandwidth: 1 to 0.02 octaves at 3dB point
Level: 0 to 16dB

Control Inputs
Frequency: 1 volt per octave
Bandwidth: 0 to 5 volts
Level: 0 to 5 volts
Max input/output: 20 volts peak to peak
Overload Indicator: Illuminates at 3dB below clip level
Current consumption: 75mA
Dimensions: 128.4mm H x 80.7 mm W
