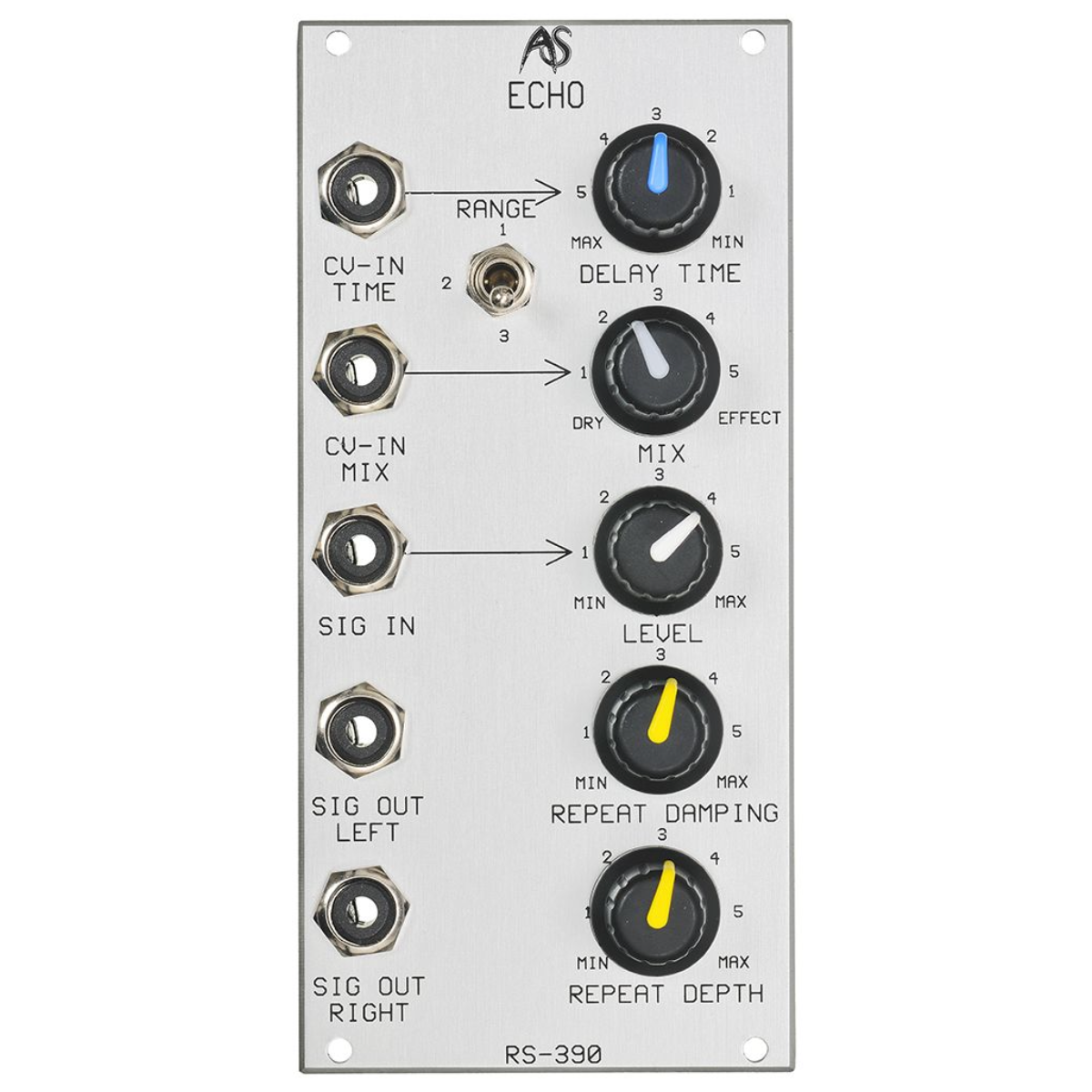

Analogue Systems RS-390 Echo

IMPORTANT: Analogue Systems modules have their own power cable that may or may not be compatible with your eurorack case.  Click this link for an installation guide.

Voltage Controlled Delay, Mono In Stereo Out

• 12 hp
• 4.5 inches depth
• 160 mA +/-12V
• 160 mA +5V

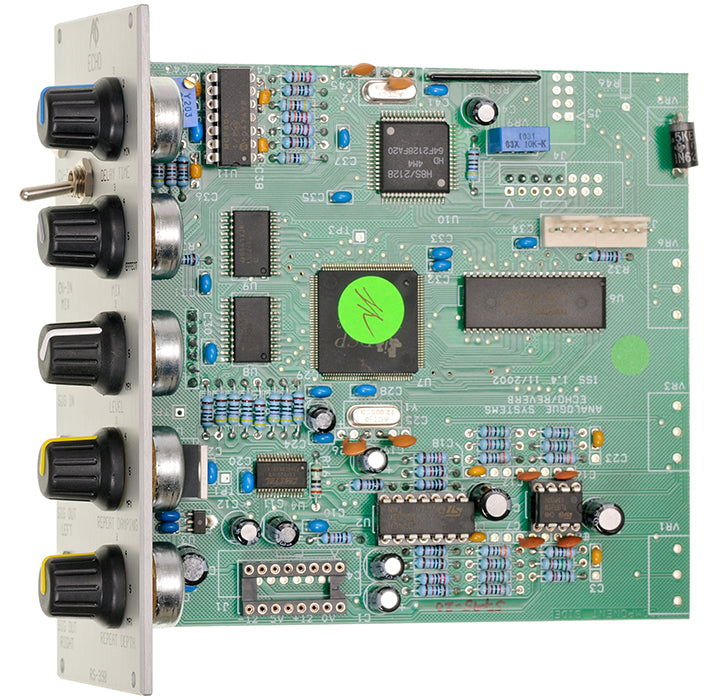

The RS-390 is a 24-bit stereo digital delay line with a sample rate of 46.9kHz, and a maximum delay time of approximately three seconds. It offers three delay ranges with CV control, as well as CV control of the dry/wet mix. The input and output converters (ADC and DAC) are 24-bit linear PCM although the RS-390 uses 16-bit audio throughout.
