Ottobit Jr.

Features

• Handcrafted Algorithms
• Variable Sample Rate and Bit Crushing
• Vintage Synth inspired Low-Pass Filter
• Triggered Stutter Effects
• Sequencer module for Pitch, Filter or Decimation pattern sequencing
• Tap Tempo for Sequencer and Stutter

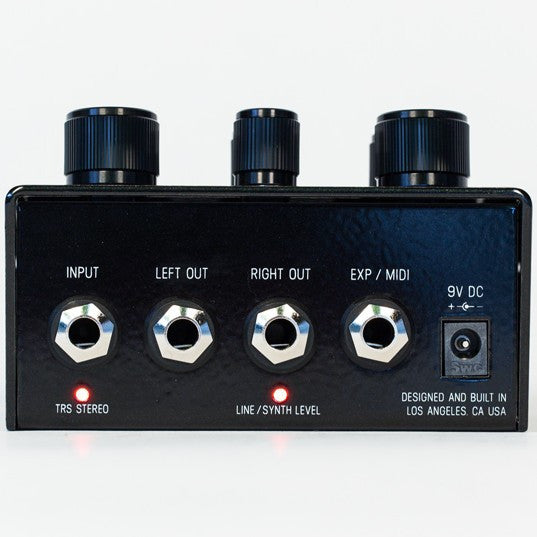

• Stereo input and output
• Switchable input/output headroom level for Guitar, Synthesizer or Line levels
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI in/out over TRS via the EXP jack
• Remote Tap Tempo Switch capable via the EXP jack
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – glossy black with subtle flake
• Designed and built in Los Angeles, California U.S.A.

Specifications

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• 150 mA total power consumption
• Durable black powder coat with fine metal flake
• Current draw – <150 mA
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
