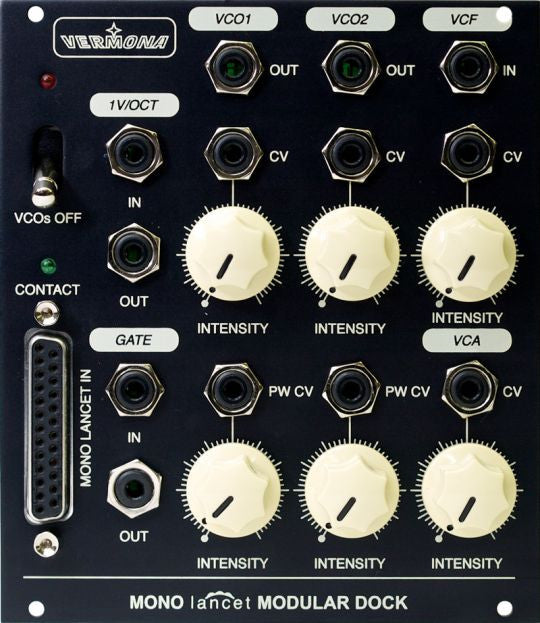

Vermona Modular Dock for Mono Lancet

The Modular Dock brings the sound of Mono Lancet to your modular system. Discover new soundscapes through extended modulation possibilities and use the fantastic Mono Lancet filter to refine external sound sources.

Inputs

• FM VCO1
• PWM VCO1
• FM VCO2
• PWM VCO2
• VCF IN
• FM VCF
• CV IN VCA
• 1V/octave CV VCO1 & VCO2
• GATE (VCO1 & VCO2)
• MONO LANCET IN (CONTACT)

Outputs

• VCO1
• VCO2
• 1V/Octave CV (MIDI-to-CV)
• GATE

Controllers

• Intensity FM VCO1
• Intensity/Pulsewidth VCO1
• Intensity FM VCO2
• Intensity/Pulsewidth VCO2
• Intensity FM VCF
• Intensity CV VCA

Switch

• VCOs OFF (switches of the oscillators of Mono Lancet internally)

Measurements

• 3U (Eurorack)
• 22 HP (horizontal pitch)

Power Consumption

• 25 mA

Scope of delivery

• Modular Dock
• SUB-D cable
• mounting screws
