Filterbank 2x2 RACK

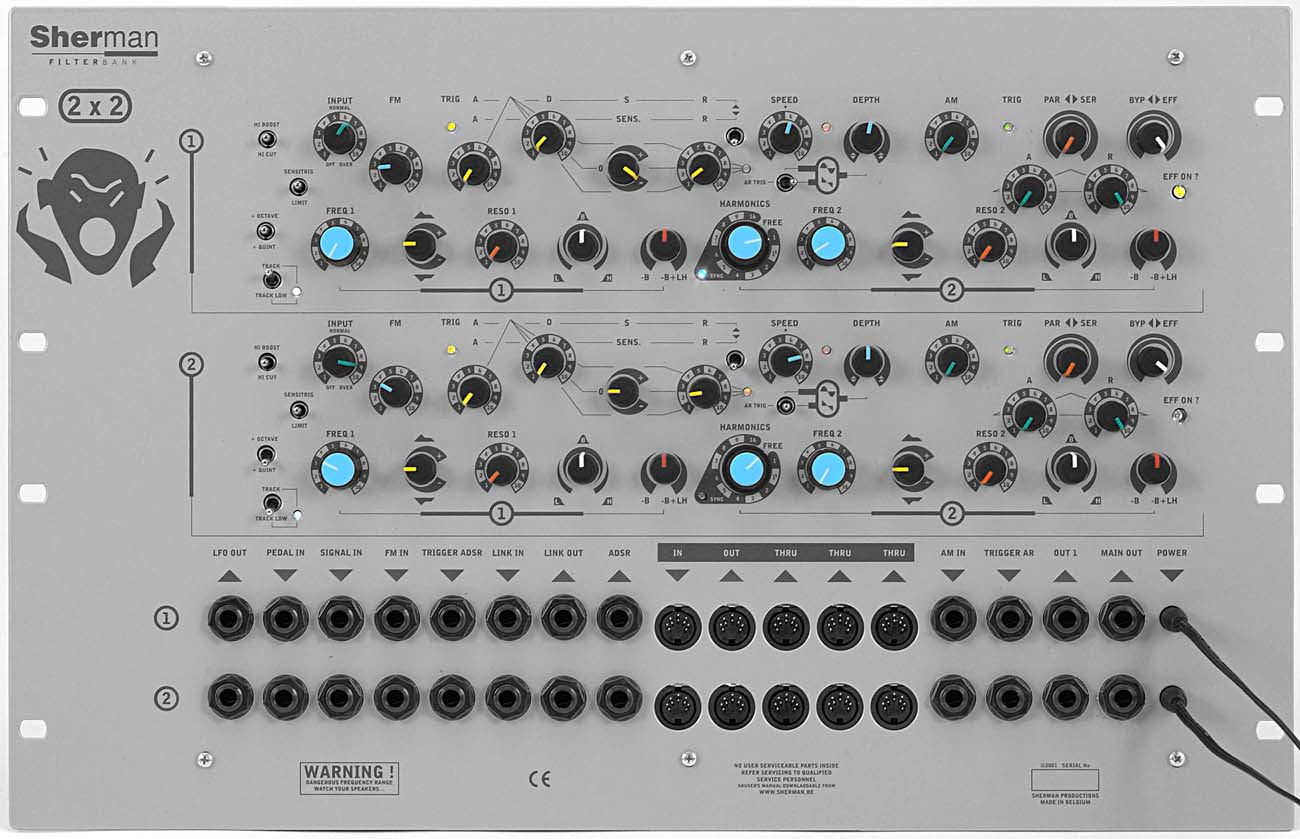

The Sherman Filterbank 2x2 RACK contains 2 independent Sherman Filterbank 2 RACKs in a single rackmount unit with all patch points right on the front panel. The 2x2 RACK also features an extra LFO output on each channel. Here are the features of a single Filterbank 2. In the 2x2 RACK you get double what is listed.

• 2 Independent low pass, band pass and high pass filters with resonance, frequency and ADSR (positive or negative)
• Switchable parallel or serial
• Filter-2 has a 6-Octave range, and is synchronizable with Filter-1
• ADSR Generator with an output for other filterbanks or modular systems, triggered by the incoming signal, by a second sound source or gate
• 1 FM input for the filters, internal or external audio, LFO or CV
• 1 VCA overdrive with AR generator
• 1 ring modulator input, internal or external audio, LFO or CV
• Pedal input allows foot control of frequency 1 and bypass/effect switching
• 5mm big green LED indicates "Effect on" on the FB 2
• 3-way switch on the input stage allows Hi boost as well Hi cut
• "Sensitrig" switch for a variety of input signals
• "Tracking" function - a monophonic pitch follower that tunes filter 2 to the incoming pitch, and makes filter 1 the slave of filter 2 via the harmonics switch.
• A new white LED indicates when the tracking system is "locked on".
• 3-way switch in the LFO section, allowing sawtooth wave shape OR AR retrig : this forces an LFO restart from the AR trig which results in pumping grooves
• Pedal Input
