Analogue Systems module installation
Analogue Systems modules include their own custom ribbon connector that differ from the standard Doepfer ribbon connector. Many Eurorack cases include two types of power sockets (Doepfer and Analogue Systems type) for connecting modules. Please check that your case has compatible Analogue Systems sockets or please inquire about purchasing a converter cable from us. We are here to assist you with any questions you might have on connecting these modules but are not responsible for modules that are improperly installed. Please be sure to understand the connectors before purchasing.
This is an Analogue Systems Ribbon Connector:

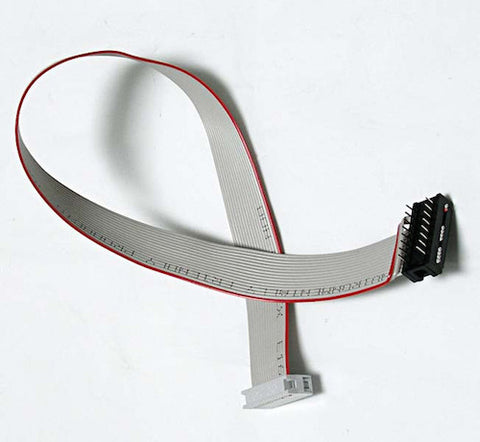

This is an Analogue Systems RA-1 Ribbon Adapter Cable for use in cases without Analogue Systems connectors:

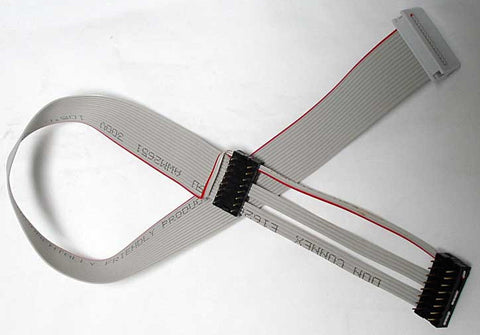

Specific Analogue Systems modules with two socket connectors (such as the RS-35) require the use of an RA-2 Ribbon Adapter Cable in cases without Analogue Systems connectors:
